Viscometers and accessories

Viscometer DV2T

Programmable viscometer using Program Generator Software for multi step measurements

  • Measuring geometry: disk, cylindrical or special spindles, adapters with coaxial cylinders
  • Internal data storage

  • Time tests and data averaging

  • USB interphase for optional PC control via RheocalcT software

  • Customizable user access, secure 21 CFR features

  • Compatible with all Brookfield accessories

TECHNICAL DATA SHEET EN
TECHNICAL DATA SHEET CZ

Viscometer DV1M

Continuous sensing viscometer with timed measurement function

  • Measuring geometry: disk, cylindrical or special spindles, adapters with coaxial cylinders
  • Optional software Wingather SQ collects, analyzes and record test data

  • Time tests and printing capability

  • Optional temperature probe

  • Compatible with all Brookfield accessories


TECHNICAL DATA SHEET EN
TECHNICAL DATA SHEET CZ

Viscometer DVE

Viscometer combines economy and ease of operation

  • Measuring geometry: disk, cylindrical or special spindles, adapters with coaxial cylinders

  • Compatible with all Brookfield accessories







TECHNICAL DATA SHEET EN
TECHNICAL DATA SHEET CZ

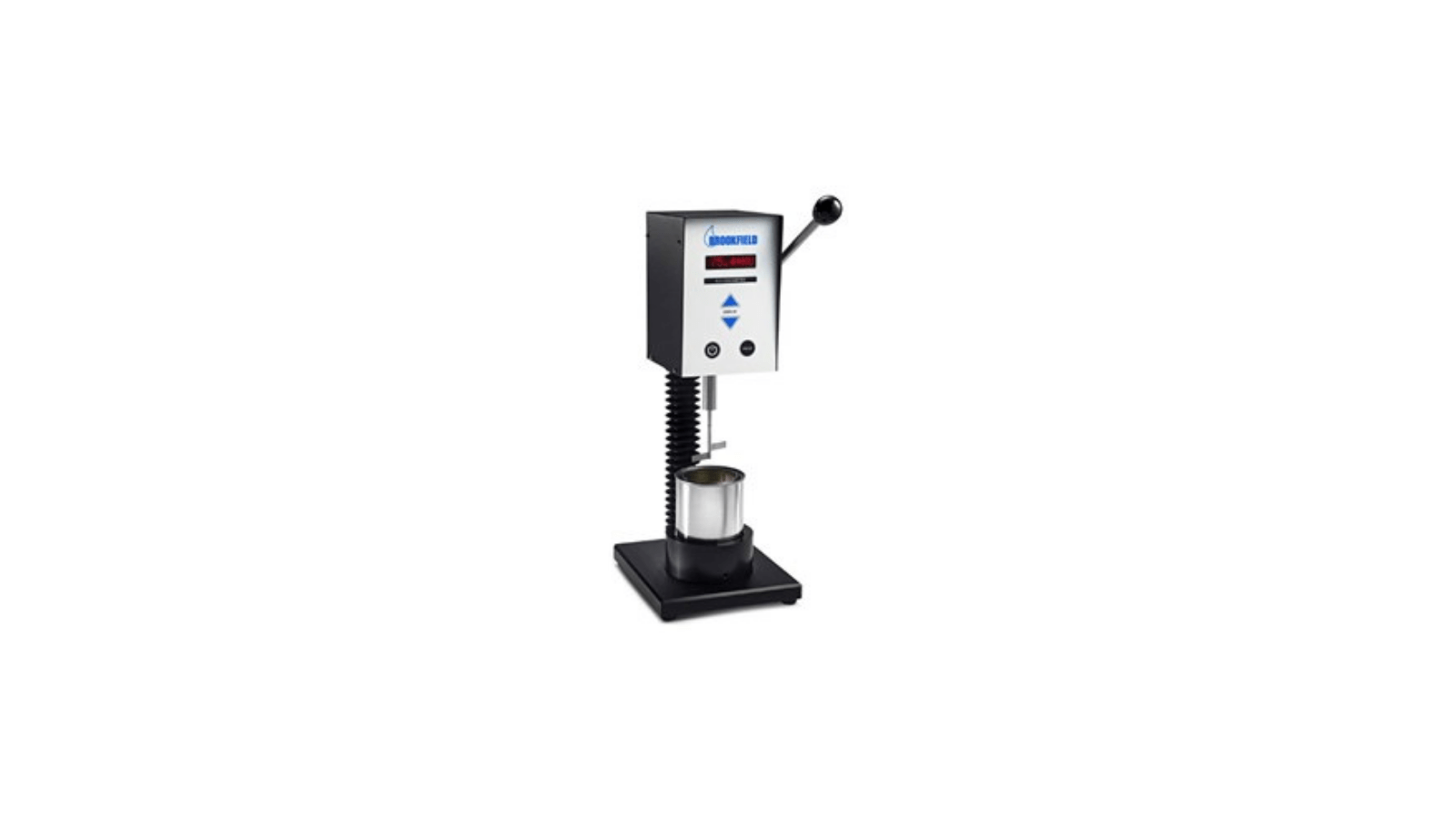

Viscometer KU-3

Special viscometer for paints, coatings and inks, ASTM D562 compatible

  • LED display info: Krebs units, Gram units, Centippoise
  • Measurement range: 40 - 141 KU, 32 - 1099 g, 27 - 5271 cP







TECHNICAL DATA SHEET EN
TECHNICAL DATA SHEET CZ

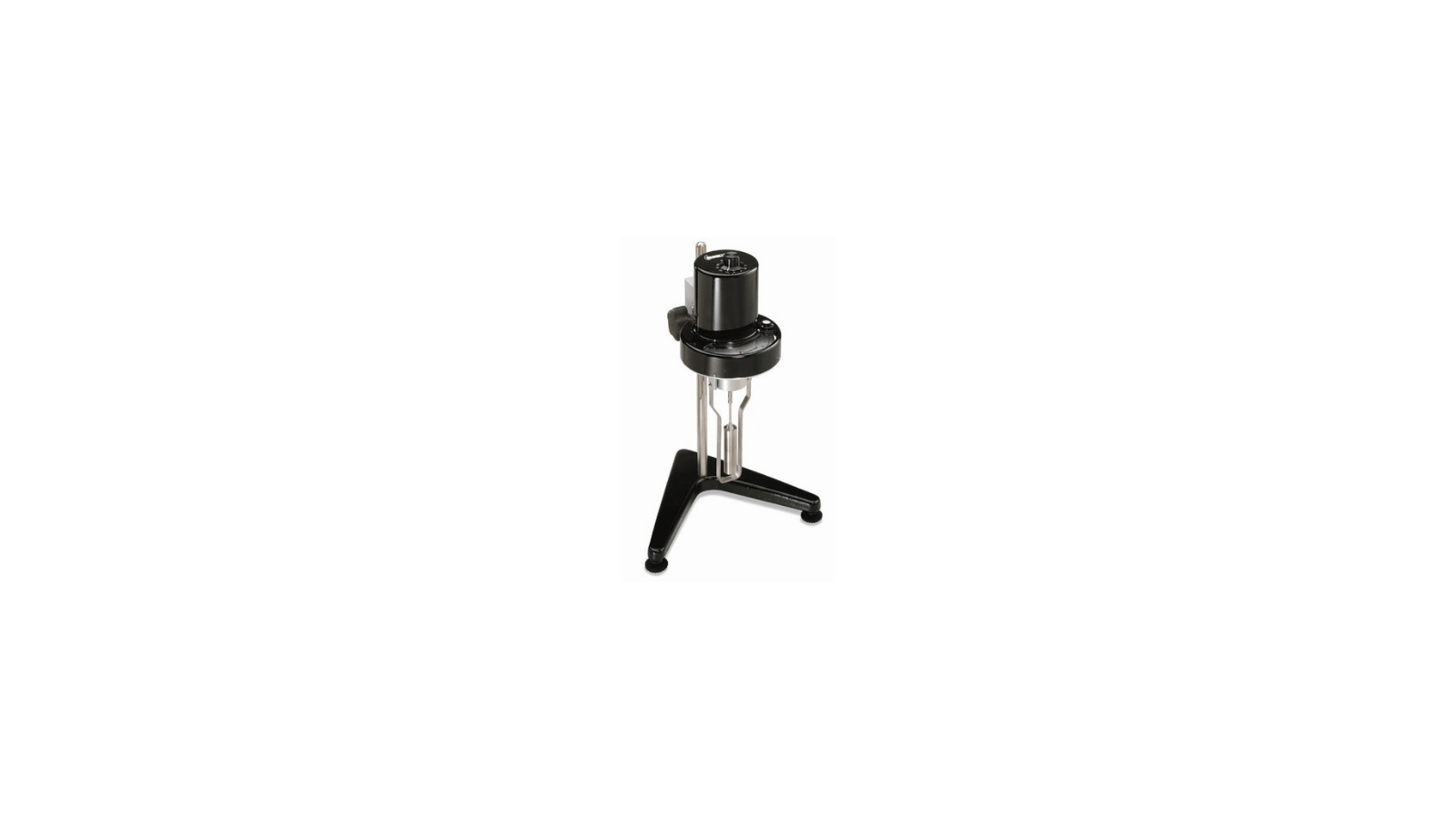

Dial viscometer

  • the worldwide standard
  • manual calculation is required to obtain centipoises values

  • compatible with all Brookfield accessories




TECHNICAL DATA SHEET

Viscometer CAP 1000+

cone-plate viscometer to measure small sample volume at single speed, ISO 2884, ASTM D4287, BS 3900 compatible

  • choice of torque range: high torque (ICI specification) or low torque
  • choice temperature control: L = 5 - 75 °C or H = 50 - 235°C






TECHNICAL DATA SHEET EN
TECHNICAL DATA SHEET CZ

Viscometer CAP 2000+

cone-plate viscometer to measure small sample volume at variable speed, ISO 2884, ASTM D4287, BS 3900 compatible

  • appropriate for moderate to high shear tests up to 10,000 1/s
  • choice of torque range: High torque (ICI specification) or low torque

  • choice temperature control: L = 5 - 75 °C or H = 50 - 235°C

  • variable speed 5 - 1,000 RPMC

  • optional Capcalc software to control viscometer

TECHNICAL DATA SHEET EN
TECHNICAL DATA SHEET CZ

Process in-line viscometers

In-line viscometer VTE VISCOSEL

Rotational in-line viscometer for automatic viscosity control of systems open to the atmosphere

  • viscosity range: 10 - 4,000 mPa.s with output signal 4 - 20 mA
  • optional solenoid rele control to automatically adjust viscosity on production line
















TECHNICAL DATA SHEET

In-line viscometer TT-100

rotational in-line viscometer with concentric cylinder measuring geometry for installation in pipes or by-pass

  • viscosity range: 10 - 500,000 mPa.s or 350  - 250,000 mPa.s
  • shear rate range: 10 - 1,000 1/s
  • electrical code: NEMA4 , NEMA7 or ATEX















TECHNICAL DATA SHEET VISCOSIMETER
TECHNICAL DATA SHEET SANITAR VISCO...

In-line viscometer FAST

measures damping effect of torsionally oscillating probe, no moving parts, no maintanance

  • used mainly in printing, coating and adhesive operations
  • viscosity range: 1 - 3,000 (optional 12,000) cSt

  • FAST-101  for application in pipes, by-pass, flange mount or as a probe inserted in the tank from above

  • FAST-102 is compliant to 3A sanitary standards

  • FAST-101 with transmitter MXTS enables connection toautomated control systems (PC, PLC, DCS, etc.)

Single or multiple station viscosity controllers AST-330SY or AST-420SY  to measure and display  viscosity, temperatureplotu and pH.

  • Sensor configuration: NEME4, NEMA7, ATEX, sanitary or ink systém


TECHNICAL DATA SHEET

Viscometer/rheometer accessories and special items

  • Optional special measuring spindles available as AISI 316 stainless steel or teflon coated or made from molybdenum
  • Robust ball bearing suspension for viscometer torque models RV,HA orHB
  • Magnetic spindle coupling for viscometers  DV1M, DV2T and rheometr DVNext
  • Quick action lab stand
  • Thermosel system for elevated temperature testing from 40 up to 300 °C
  • UL adapter and UL-DIN adapter for measurement of low viscosity materials, range from 1 mPa.s
  • Small sample adpater for rheological evaluation where sample volume is limited
  • Helipath stand for measurement of non-flowing substances like gels, pastes, putty, creams, gelatin, etc.
  • Spiral adapter for measuring heavy paste-like materials such as solder paste, cosmetics, pharmaceuticals or food,
  • Vane spindles for measurement paste-like materials, gels, fluids with suspended particles
  • Temperature bath systems with selection of simple or programmable controllers with temprature range from -20°C up to +200 °C
  • Printer Dymo 450 Turbo Writer for viscometers DV1M and DV2T and rheometer DVNext
  • Viscosity standards - silicone or mineral oils for calibration of viscometers and rheometers (5 mPa.s - 100 000 mPa.s)
  • Viscosity standards for calibration of viscometers and rheometers - overview of fluids
